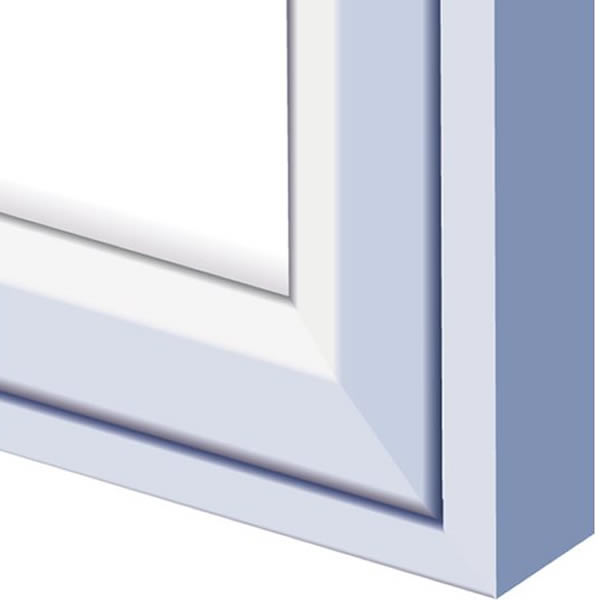

Aluminium frame with single 4 mm plexishock vandal resistant hinged door
-
Certified to EN60529 (IP55) against water and dust ingress
-
Security lock and 2 keys
-

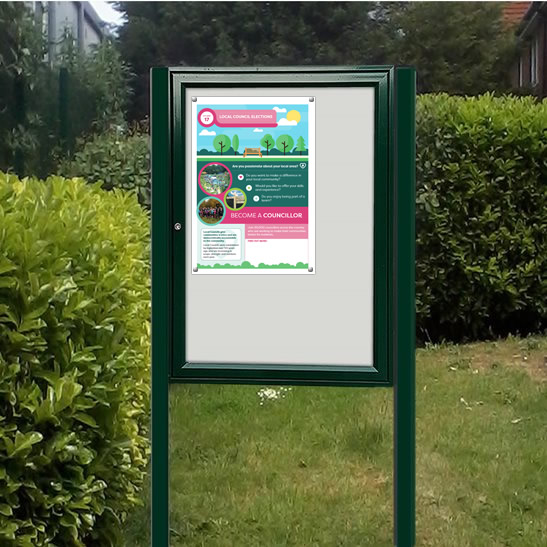

Supplied with 2 x 60/40 mounting posts, with a powder coated finish to match the colour of the frame
-
Elastomer seal and anti condensation vents
-

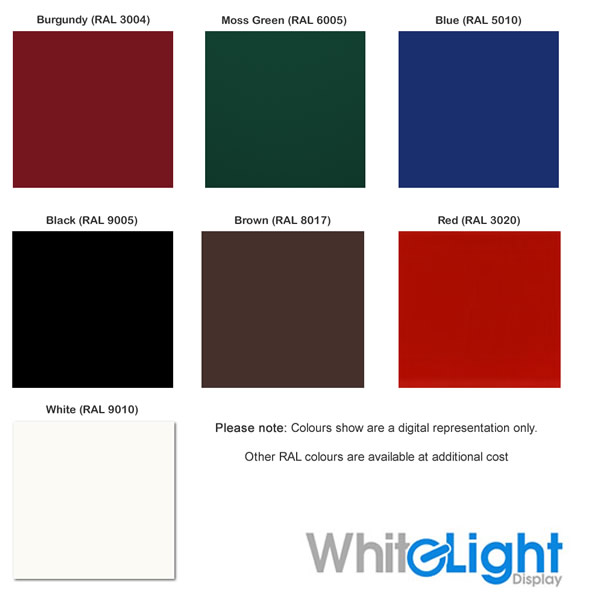

Choose from 7 standard RAL colours with bespoke colours available at additional cost
-

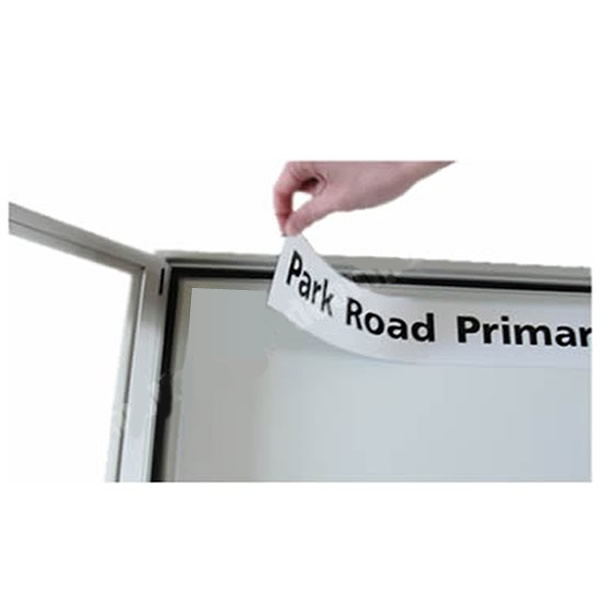

Available with an optional vinyl text printed internal magnetic header plate
-
30 mm External frame depth and 25 mm internal depth
-
Zinc electroplated white backboard suitable for use with magnets
-
Easy swap door system allows easy change of doors
-
Boards can be banked together with the use of 60 / 40 plus post. Contact us for details
-
Optional LED lighting kit. Requires mains power. Select above
Important
Please note that this product is not suitable for use with whiteboard marker pens.
Material and Standards
The Cyclone twin door has an aluminium profile EN AW 6060 - BS EN 573-3. The door is glazed with plexishock glazing which is a transparent organic UV blocking material with good shock resistance ISO 7032-2. Aluminium posts EN AW 6106, EN AW 6060 and EN AW 6063 - EN 755-2 providing high mechanical strength.
Installation
Post mounted boards are supplied with two 60mm x 40mm aluminium posts with black top caps and a universal fixing system consisting of brushed stainless steel brackets and bolts. Post height 2600mm with 600mm to be embedded into a concrete base.
Please note that the cases are designed to be hinged on the left and opening on the right on delivery. If you wish to hang the door so it opens to the left, please install as normal then remove the three rubber adhesive pads located down the integrated hinge, rotate the door to the right and replace the rubber adhesive pads.
Lighting Kits
Lighting is supplied as a self installation kit. The kit consists of a waterproof transformer and LED lighting strip with double sided adhesive tape. Cables are not supplied. The lighting should be fitted by a qualified electrician. The Transformer is to be located outside of the case. The case needs to be drilled to allow the cables to be fed through and a silicone sealant used to seal the hole.
Please Note
Please note the reverse of the backboard is supplied in silver regardless of the frame colour selected. If you require the reverse of the board to be powder coated to match the frame, please contact us for a price.
Other Options
The Cyclone outdoor noticeboard is available wall, post and rail mounted and has the option of an externally mounted shaped header with a message of your choice. Please visit the relative page on the web site.
Guarantee
The Cyclone has a 2 year guarantee against manufacturing faults.
