Silver aluminium frame with single 4 mm plexishock vandal resistant door
Certified to EN60529 (IP55) against water and dust ingress
Security lock and 2 keys

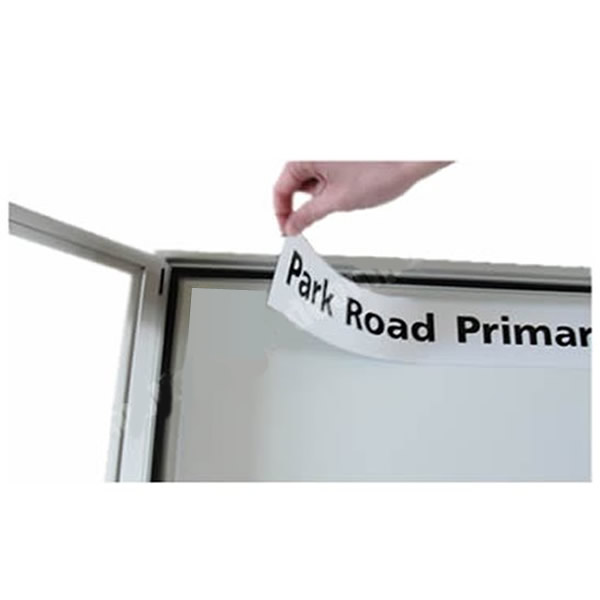

Price includes single colour vinyl text and logo printed title plate. We suggest you contact us to discuss print options prior to ordering
Elastomer seal and anti condensation vents
Choose from 3 header panel styles; Domed, Wave and Classical (see Header Styles tab above)
30 mm External frame depth and 25 mm internal depth
Zinc electroplated white backboard suitable for use with magnets
Easy swap door system allows easy change of doors
Boards can be banked together with the use of 60 / 40 plus post. Contact us for details
Optional LED lighting kit. Requires mains power. Select above
Please note that this product is not suitable for use with whiteboard marker pens.
Material and Standards

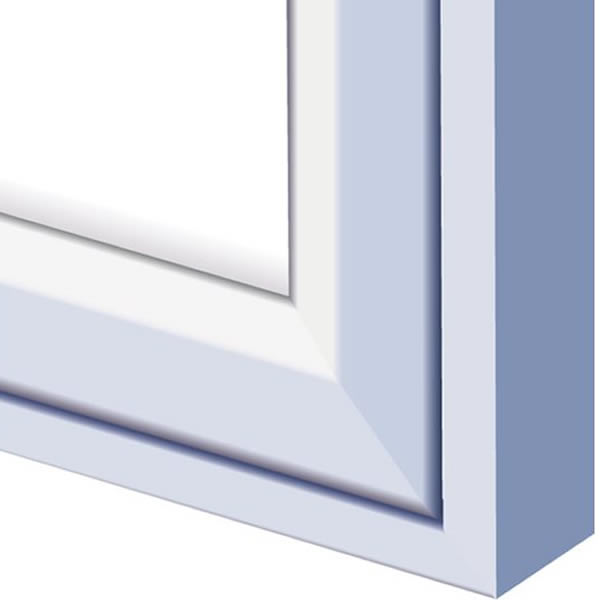

The Cyclone has an aluminium profile EN AW 6060 - BS EN 573-3. The door is glazed with plexishock glazing which is a transparent organic UV blocking material with good shock resistance ISO 7032-2. Aluminium posts EN AW 6106, EN AW 6060 and EN AW 6063 - EN 755-2 providing high mechanical strength.
External Shaped Header

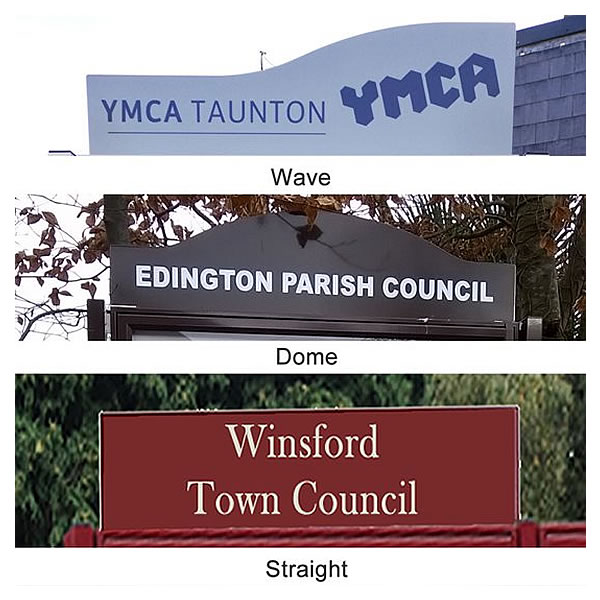

Headers are available in three different shapes; Domed, Wave and Classical (see Header Styles tab above). As standard the header panel is powder coated to match the frame, but you do have the option of a different colour header. Our price includes single colour text and logo. We suggest you contact us prior to placing your order to discuss the available print options.
For your peace of mind we will email you a proof of your header panel design prior to going to print..

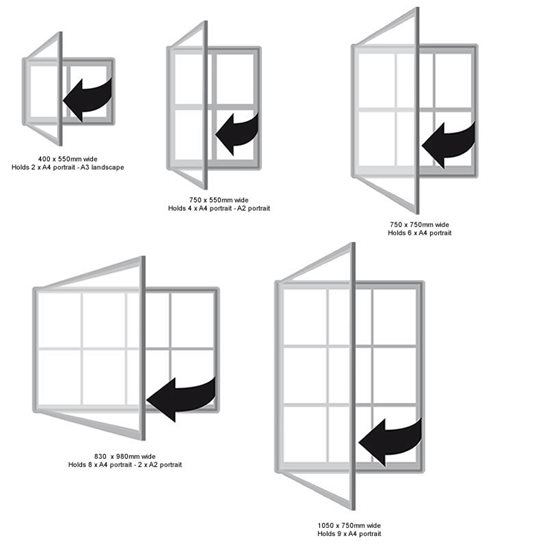

Please note that the cases are designed to be hinged on the left and opening on the right on delivery. If you wish to hang the door so it opens to the left, please install as normal then remove the three rubber adhesive pads located down the integrated hinge, rotate the door to the right and replace the rubber adhesive pads.
Lighting is supplied as a self installation kit. The kit consists of a waterproof transformer and LED lighting strip with double sided adhesive tape. Cables are not supplied. The lighting should be fitted by a qualified electrician. The Transformer is to be located outside of the case. The case needs to be drilled to allow the cables to be fed through and a silicone sealant used to seal the hole.
Please note the reverse of the backboard is supplied in silver regardless of the frame colour selected. If you require the reverse of the board to be powder coated to match the frame, please contact us for a price.

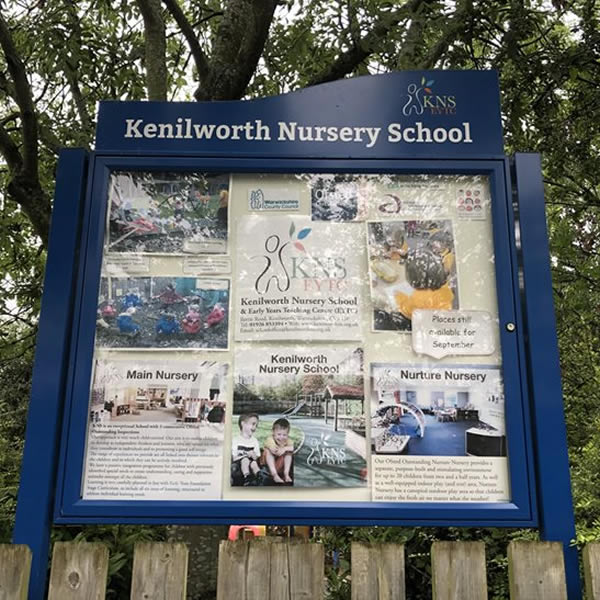

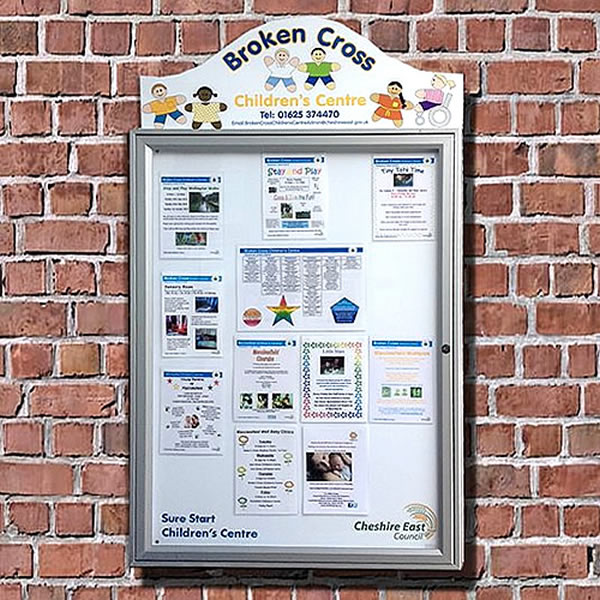

The Cyclone outdoor noticeboard is available wall, post and rail mounted and has the option of an externally mounted shaped header with a message of your choice. Please visit the relative page on the web site.
Delivery normally 20-25 working days. Please call if your order is urgent
The Cyclone has a 5 year guarantee against manufacturing faults.
