Cyclone 2 Door External Noticeboard with Printed Header & Painted Frame

Cyclone 2 Door External Noticeboard with Printed Header & Painted Frame
  Zoom
Cyclone 2 Door External Noticeboard with Printed Header & Painted FrameCyclone 2 Door External Noticeboard with Printed Header & Painted FrameCyclone 2 Door External Noticeboard with Printed Header & Painted FrameCyclone 2 Door External Noticeboard with Printed Header & Painted FrameCyclone 2 Door External Noticeboard with Printed Header & Painted Frame
Quantity Discount
5% off orders of 5+ units.
10% off orders of 10+ units.
Price From:  £695.50(£834.60 Inc. VAT)
  (1 Review)
Upload Your Artwork:
Graphics or logos should be supplied in high resolution (300dpi) in JPEG, PDF, Vector or ESP file formats. Alternatively email your artwork later or contact us to discuss your requirements.
+
Magnets for Whiteboards and Noticeboards | 20mm/35mm DiametersMagnets for Whiteboards and Noticeboards | 20mm/35mm Diameters

Code:  CYC-TH-4050-W-WLD
Guarantee:  5 Years

About the Product

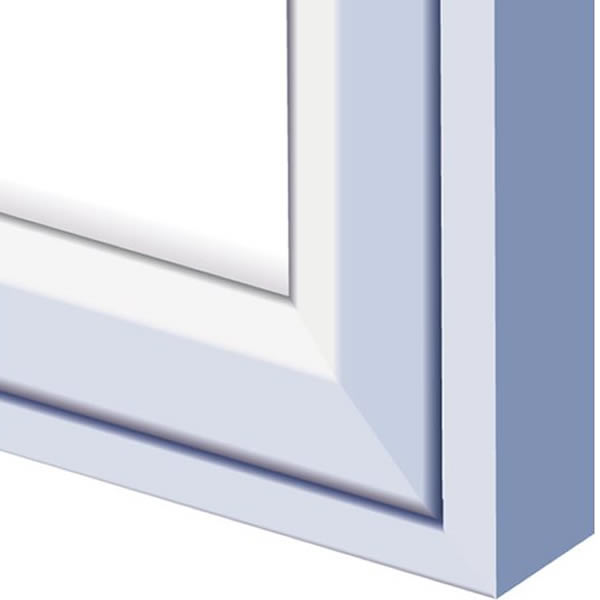

  • Aluminium powder coated frame with 2 x 4mm plexishock vandal resistant doors, security lock and 2 keys

  • Certified to EN60529 (IP55) against water and dust ingress

  • Powder coated frame in 7 standard RAL colours

  • Supplied with a single colour vinyl text printed title plate in matching colour to case and posts. Our price includes text and logo printing

  • Choose from 3 title plate styles; Domed, Wave and Classical (make your selection above)

  • 30mm External frame depth and 25mm internal depth

  • Zinc electroplated white steel backboard

  • Documents held in place by the use of small magnets - optionally sold above

  • Wall mounted boards are pre-drilled through the back panel for ease of mounting

  • Elastomer seal and anti condensation vents

  • Easy swap door system allows easy change of doors

  • Optional LED lighting kit. Requires mains power. Select above

Important

Please note that this product is not suitable for use with whiteboard marker pens.

Printed Header Plate

Headers are available in three different shapes; Domed, Wave and Classical (see Header Styles tab above). As standard the header panel is powder coated to match the frame, but you do have the option of a different colour header. Our price includes text and logo if required.

For your peace of mind we will email you a free of charge proof for your approval prior to printing the header.

Material and Standards

The Cyclone has an aluminium profile EN AW 6060 - BS EN 573-3. The door is glazed with plexishock glazing which is a transparent organic UV blocking material with good shock resistance ISO 7032-2. Aluminium posts EN AW 6106, EN AW 6060 and EN AW 6063 - EN 755-2 providing high mechanical strength.

Lighting Kits

Lighting is supplied as a self installation kit. The kit consists of a waterproof transformer and LED lighting strip with double sided adhesive tape. Cables are not supplied. The lighting should be fitted by a qualified electrician. The Transformer is to be located outside of the case. The case needs to be drilled to allow the cables to be fed through and a silicone sealant used to seal the hole.

Installation

Please note that the cases are designed to be hinged on the left and opening on the right on delivery. If you wish to hang the door so it opens to the left, please install as normal then remove the three rubber adhesive pads located down the integrated hinge, rotate the door to the right and replace the rubber adhesive pads.

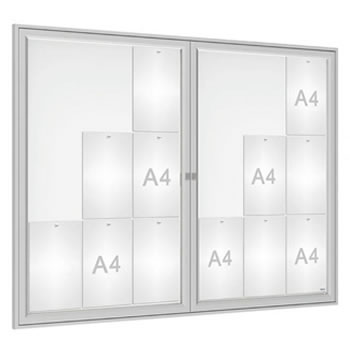

Cyclone Twin Door Notice Board Dimensions Cyclone Twin Door Notice Board Dimensions

8 x A4
750mm H x 1200mm W (Landscape)

12 x A4
1050mm H x 1400mm W (Landscape)

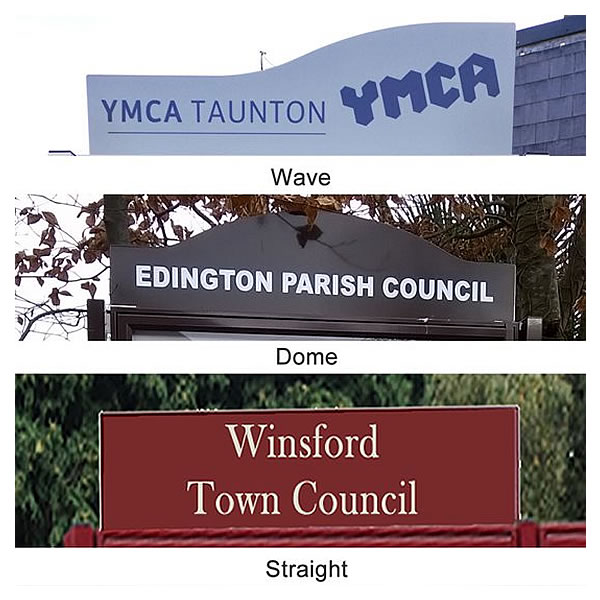

Our post mounted Cyclone notice board are now available with a range of printed headers manufactured in stainless steel and in a colour to match the case and posts. Select from the three header styles below.

Dome Header

Domed

Wave Header

Wave

Classical Header

Classical

Blue RAL 5010 Green RAL 6005 Black RAL 9005 Burgundy RAL 3004 Brown RAL 8017 White RAL 9010 Red RAL 3020

Blue
RAL 5010

Green
RAL 6005

Black
RAL 9005

Burgundy
RAL 3004

Brown
RAL 8017

White
RAL 9010

Red
RAL 3021

Estimated Delivery Lead Time

Special Order Item: 20 - 25 Working Days.

Cyclone 2 Door Noticeboard With Printed Title Plate - Painted Frame | IP55 Rated
£799.00  -  £954.00
Delivery 20 - 25 Working Days
Cyclone Post Mounted Noticeboard with Painted Frame
£367.44  -  £588.95
Delivery 15 - 20 Working Days
Cyclone Post Mounted Noticeboard with Printed Header & Painted Frame
£495.99  -  £738.92
Delivery 20 - 25 Working Days
